Alliance PARKER 938 Gravity
Alliance PARKER 938
5+
sold in last yearGeneral overview

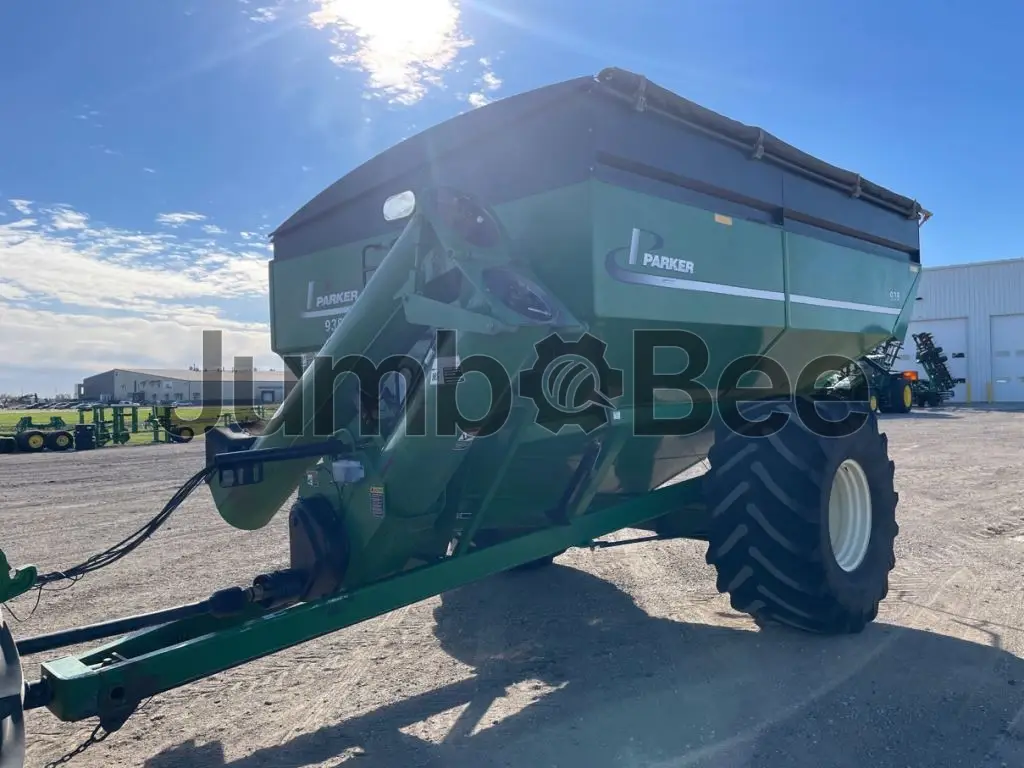

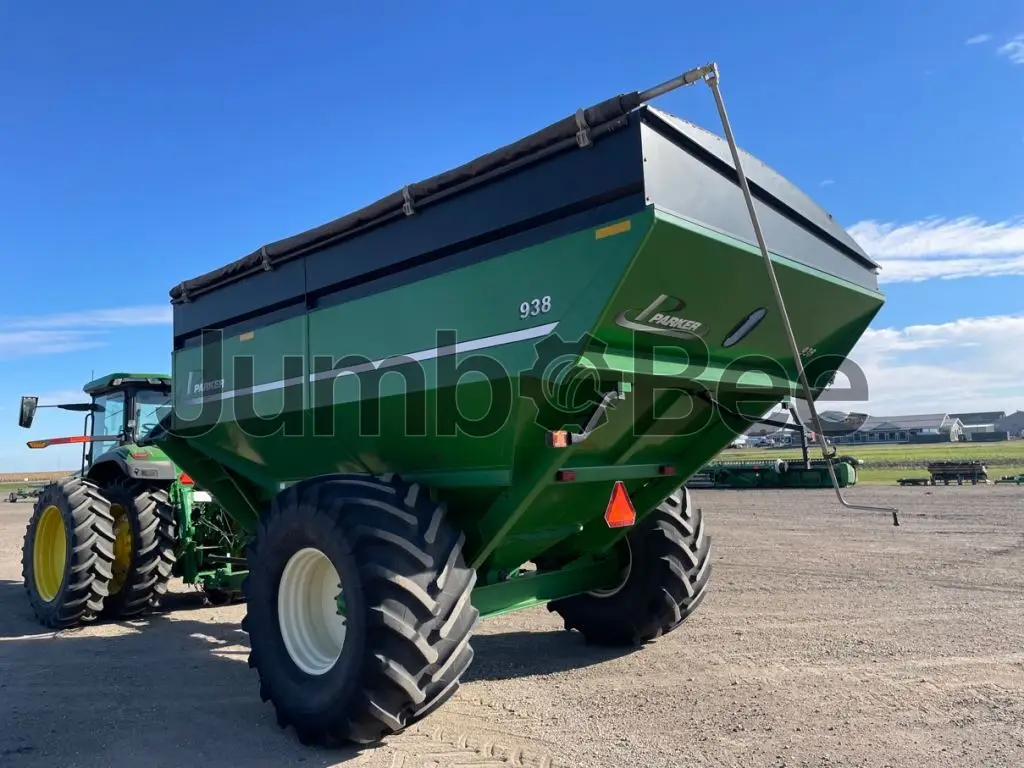

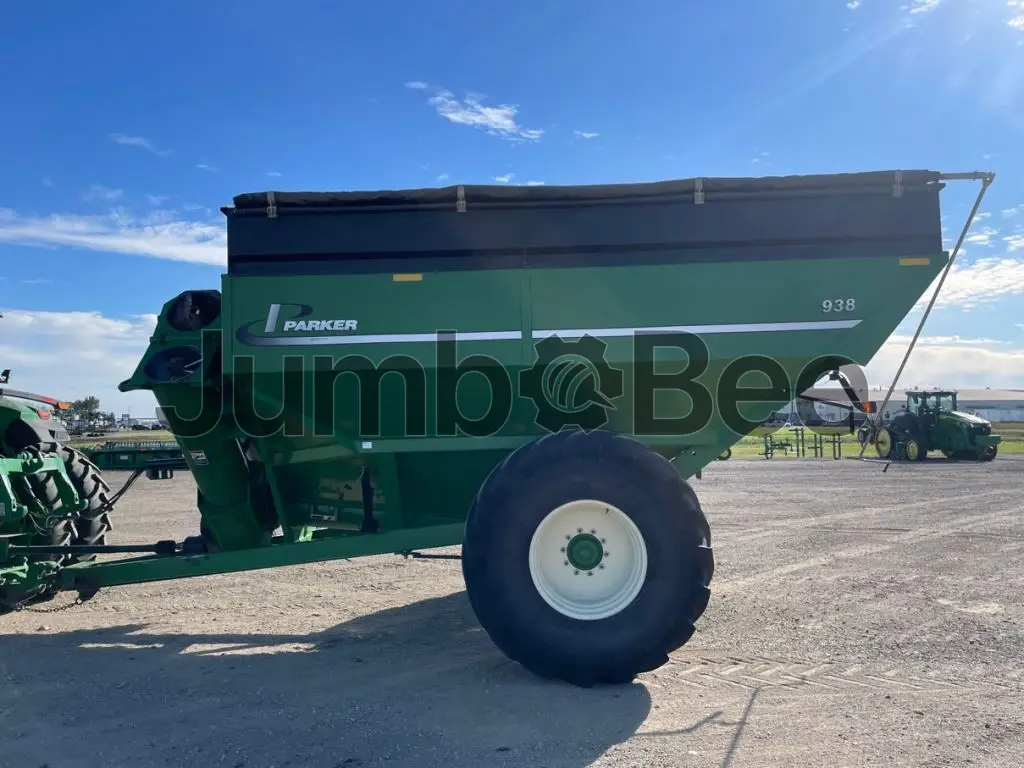

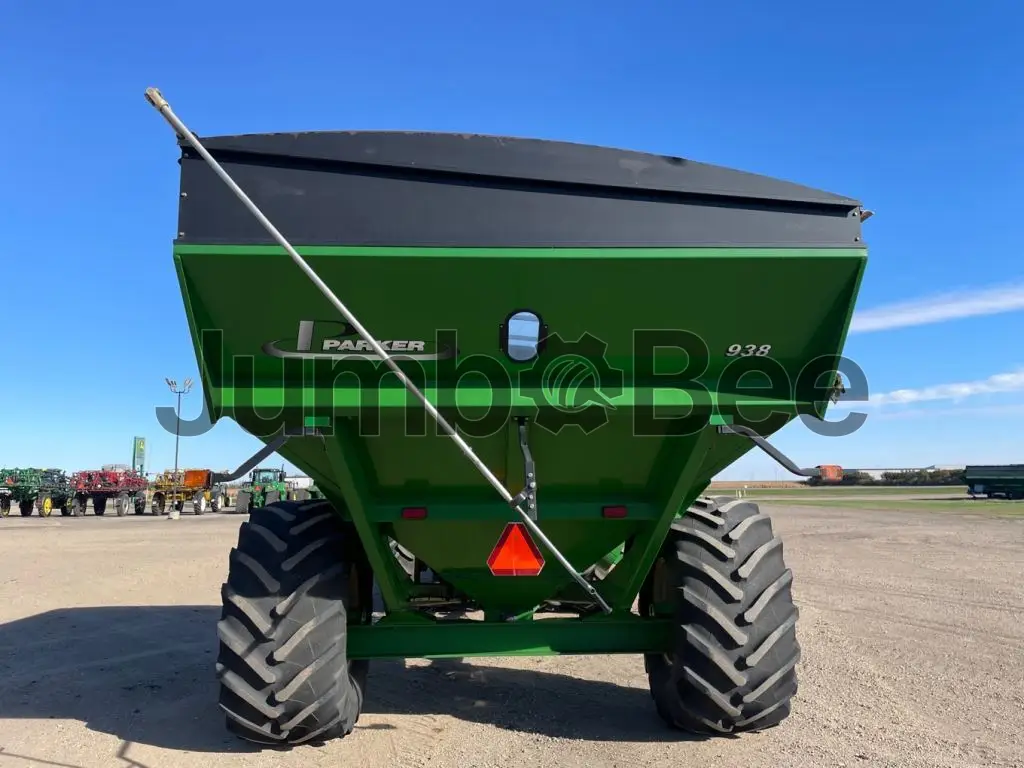

Alliance PARKER 938 grain cart was produced in the United States in 2011 and is used to receive and unload harvested grain during field operations for grain transfer. It is configured for tractor-supported operation with a power requirement of 165 kW (225 hp) and PTO speed of 1,000 rpm.
Its tractor hydraulics requirements are 2 remote SCVs (Selective Control Valves) at 2000 PSI / 140 bar, 30 GPM (113 L/min) flow minimum. The cart’s material-handling system includes a peak unloading rate of 6,800 L/min (1,796.4 gpm), a 460 mm (18 in) vertical auger, and a 410 mm (16 in) horizontal auger. Total weight - empty is 7,480 kg (16,490 lb), and Hitch weight - loaded is 2,948 kg (6,500 lb).
Year
2011
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
10,200 mm
~401.6 in
3,800 mm
~149.6 in
3,600 mm
~141.7 in
Grain Cart Capacity
36,100 L
Hub Size/Spindle Diameter
127 mm (5 in) spindle diameter
Front/Rear Slopes
Front slope: 45 degrees; rear slope: 35 degrees
Back Slope
35 deg
Door Width
0.75 m
Chute Height
3.7 m (12 ft)
Unloading Time
45 s
Grain Cart Wheel Size
480/80R42 tires
Grain Cart Turning Radius
6.1 m (20 ft) outside turning radius
Additional specifications
Peak unloading rate
6,800 L/min
Power requirement
225 hp
Capacity Heaped
42,500 cu(m)
Tractor hydraulics requirements
2 remote SCVs (Selective Control Valves) at 2,000 PSI / 140 bar, 30 GPM (113 L/min) flow minimum
Total weight - empty
7,480 kg
Hitch weight - empty
1,270 kg
Hitch weight - loaded
2,948 kg
PSI capacity
14,000 kPa
Vertical auger
460 mm
Horizontal auger
410 mm
Gearbox
Parker Hannifin #80 right-angle planetary drive gearbox
Drive belts
5-rib Poly-V belt (Gates or equivalent)
Drive sheaves
18" drive sheave, 12" driven sheave (cast iron)
PTO speed
1,000
Alliance PARKER 938 Gravity Listings
Looking for Alliance PARKER 938 Gravity?
See similar listingsCompare Alliance PARKER 938 Gravity to other gravity
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Alliance PARKER 938?
No confirmed market price is supplied for the Alliance PARKER 938. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Alliance PARKER 938?
Supplied specifications include a 42,500 m³ heaped capacity, a peak unloading rate of 6,800 L/min, and a Parker Hannifin #80 right-angle planetary drive gearbox. It also uses separate vertical and horizontal augers and a 1,000 rpm PTO.
What type of engine does the PARKER 938 use?
No engine type is supplied for the PARKER 938. The cart requires tractor power of 167.8 kW (225 hp) and operates through a 1,000 rpm PTO.
How much horsepower does the PARKER 938 have?
The PARKER 938 has a stated tractor power requirement of 225 hp.
What fuel does the Alliance PARKER 938 use?
No fuel type is supplied for the Alliance PARKER 938. It is specified with a tractor power requirement and PTO drive rather than an onboard engine.
What jobs is this Grain carts best suited for?
The Alliance PARKER 938 is a grain cart suited to moving and unloading grain. Its supplied 42,500 m³ heaped capacity and 6,800 L/min peak unloading rate indicate its role in handling grain between harvesting and transport operations.
What is the expected lifespan of the PARKER 938?
The supplied data does not confirm an expected lifespan for the PARKER 938. Inspect augers, gearbox, belts, hitch components, tires, hydraulics, and structural condition, and review maintenance records when available.
What should a buyer check when purchasing a used Grain carts?
Check the augers for wear or damage, the Parker Hannifin #80 gearbox for leaks or noise, and the Poly-V belt and sheaves for condition. Inspect the hitch, frame, tires, hydraulic connections, PTO components, and unloading operation. Confirm required tractor hydraulics match the cart.
